You can add parts to your design in three ways:
  • Install a pre-made package
  • Find specific component with supplier search
  • Select passives automatically with the auto-picker

​
Packages

A package is a re-usable module with design, layout, and validation already completed. It’s a quick and easy way to integrate components and functionality in your design. See the packages guide for more details.

​
Installing Packages

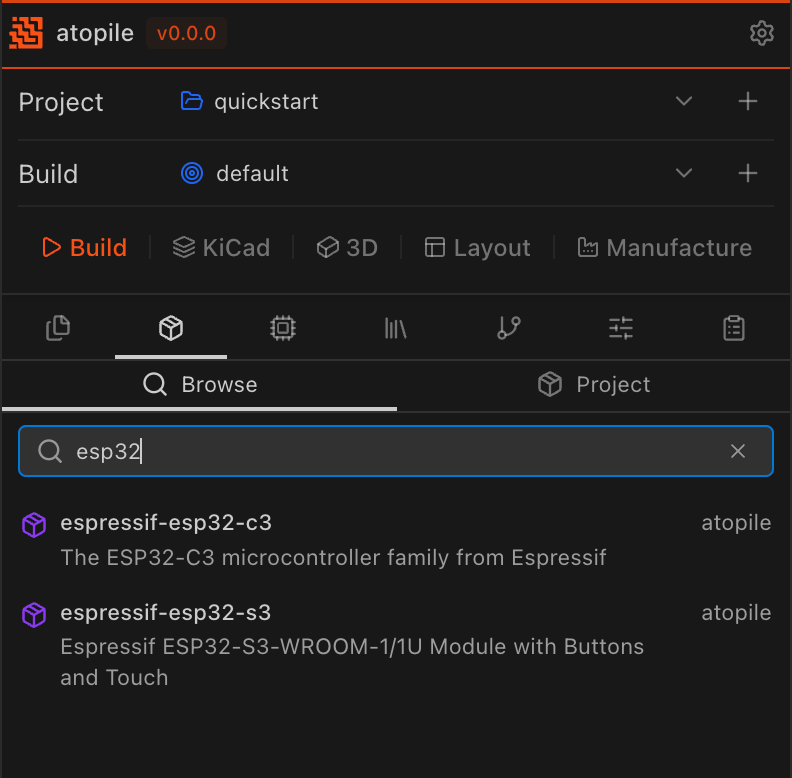

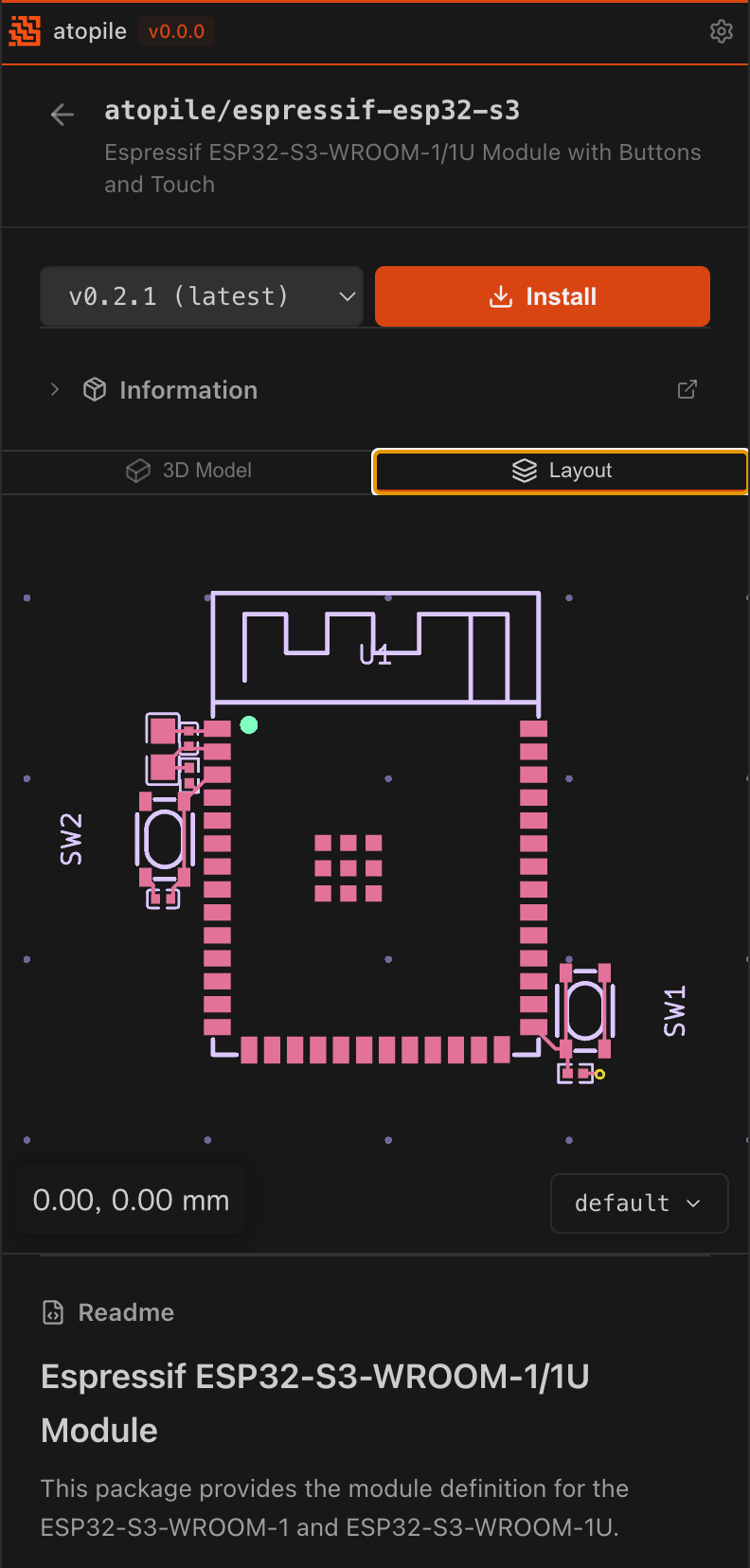

Let’s add an ESP32 microcontroller and WiFi module. In the sidebar, open the Packages tab. Under the Browse tab, you can search for and browse available packages. Package search showing ESP32 results Click a package to get an overview and install it! Package overview showing ESP32-S3 layout and install button
from "esp32-s3.ato" import ESP32S3

module MyProject:
    mcu = new ESP32S3

​
Finding Parts

In the sidebar, open the Find Parts tab. Under the Find Parts sub-tab, search for JLCPCB parts by name, description, or part number. Click on a part to add it to your project. You can switch to the Project tab to view the parts already added to your project. See the adding components guide for more details.

​
Auto-picker

For passives and other common components, specify your requirements and atopile will automatically select a matching part:

​
Standard Library

resistor = new Resistor
resistor.resistance = 10kohm +/- 5%
resistor.package = "0402"
The Standard Library tab in the sidebar lists built-in interfaces and modules (such as Resistor, Capacitor, LED, MOSFET, and more). Most of the components in the standard library are auto-pickable. See the Standard Library Reference for more details.
